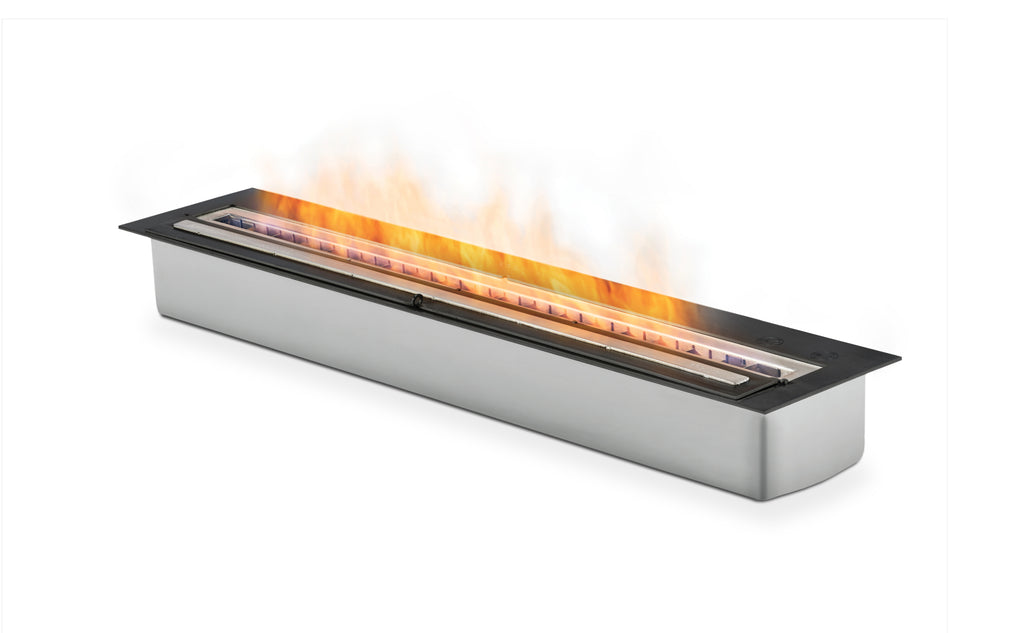

XL900 Ethanol Burner – EcoSmart Fire

Elongated Linear Flame Design

The XL900 Ethanol Burner is one of the most popular burners in the XL Series, designed to create an elongated flame that forms the centrepiece of stunning indoor and outdoor fires. Its rectangular profile and clean parallel lines complement contemporary architecture and modern living spaces.

Flexible Architectural Integration

With its linear design and minimal clearance requirements, the XL900 provides the freedom to create bespoke horizontal fireplaces. It can be integrated into specially made cabinetry, media units, walls, floating timber, stone benches and pillars.

Versatile Material Applications

The burner can be incorporated into a wide range of custom fire designs using materials such as concrete, hard timber, marble, stacked stone, stainless steel and even creatively repurposed metal barrels.

 Controlled, Efficient Flame

Purpose-designed baffle inserts allow the flame to be regulated and stabilised. With a 9-litre capacity and a burn time of up to 13 hours, the XL900 delivers an efficient linear flame experience for both indoor and outdoor applications.

Key Benefits
  • Elongated flame design ideal for contemporary linear fireplaces
  • Suitable for bespoke indoor and outdoor fire installations
  • Flexible integration into cabinetry, walls, media units, benches and pillars
  • Compatible with a wide variety of architectural materials and finishes
  • Adjustable and stabilised flame using purpose-designed baffle inserts
Specification Details
Model XL900
Fuel Capacity 9 L [2.4 Gal]
Average Heating Area 60 m² [646 ft²]
Minimum Room Volume 110 m³ [3,885 ft³]
Burn Time 8–13 hours
Thermal Output 16 MJ/h – 15,000 BTU/h – 4.4 kW
Weight 11.90 kg [26.23 lb]
Dimensions L 961 mm × W 248 mm × H 124 mm
Application Indoor & Outdoor
Material Grade 304 Stainless Steel
Colours Stainless Steel, Black



Installation Manual
