Smart EV Charging Made Simple The Ocular LTE Plus EV Wallbox gives you complete control over your home charging experience with advanced smart technology designed for convenience, efficiency, and lower energy costs. Combining a sleek compact design with intelligent app connectivity, it delivers a smarter and more sustainable way to charge your electric vehicle. |
|
|
|

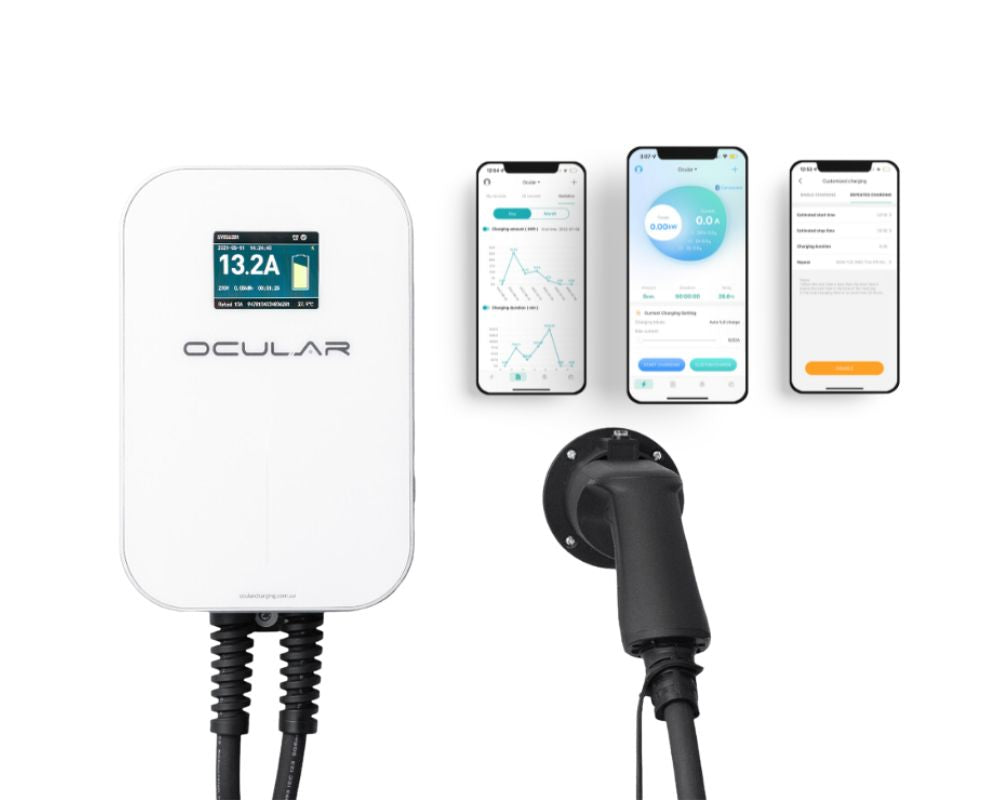

Real-Time Energy Monitoring & Smart Scheduling Using the intuitive smartphone app, you can monitor your charging activity and energy usage in real time. The smart scheduling feature allows you to align charging sessions with off-peak electricity rates or solar generation, helping reduce charging costs while lowering your carbon footprint. |
|

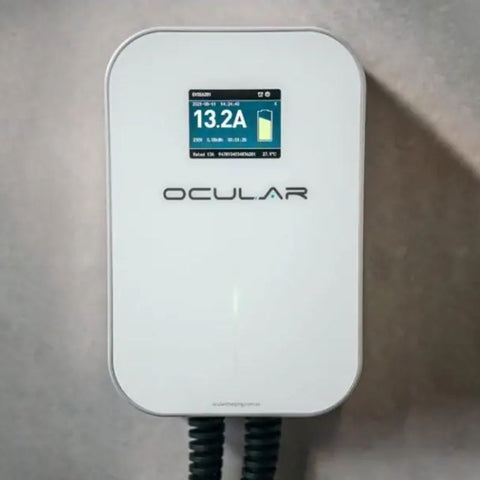

Advanced Display & Intelligent Performance Equipped with a colourful LCD display, the Ocular LTE Plus clearly shows charging status, charging time, voltage, current, and internal temperature. The system is designed to automatically resolve minor charging faults, while more serious issues are clearly displayed for easy troubleshooting. |
|
|
|

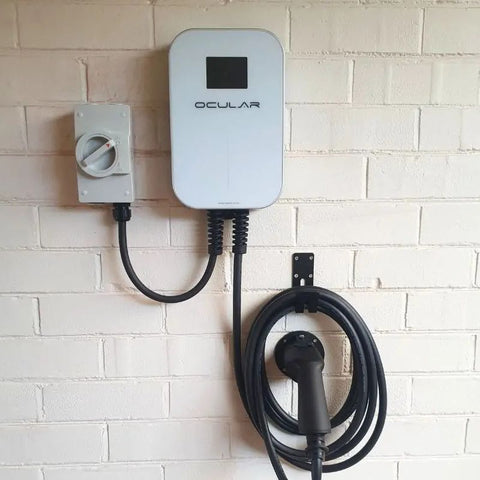

Durable Design for Everyday Reliability Built with a robust IK10-rated housing and IP55 waterproof protection, the Ocular LTE Plus is engineered for long-lasting performance in Australian conditions. It can be easily wall-mounted, with optional stand mounting available for greater installation flexibility. |
|
|
|
Convenient Home Charging Solution The charger comes complete with a 6m Type 2 EV charging cable and Bluetooth smartphone connectivity, ensuring easy and practical everyday use. Its compact modern design makes it an ideal addition to any home garage or outdoor charging setup. |
|
|
|
Key Benefits • Smart EV charging with app-based control and monitoring • Real-time energy tracking and charging analytics • Custom charging schedules for off-peak or solar charging • Includes 6m Type 2 charging cable • Colour LCD display with live charging information • Automatic fault detection and recovery system • Durable IK10 impact rating with IP55 weather protection • Compact wall-mounted design with optional stand installation |
| Specification | Details |
|---|---|
| Charging Speed | 40- 50km per hour charge. Up to 4–12× faster than conventional domestic portable chargers |
| Installation | Simple installation with preconfigured setup |
| Display | Multicoloured LCD display showing operating status |
| Cable Holder | Integrated cable holder for neat cable storage |
| Variations | Universal socket or 6m Type 2 hardwired cable |
| Phase Options | Single-phase and three-phase available |
| EV Compatibility | Compatible with all EVs in Australia including Tesla |
| Connectivity | Bluetooth app – EVSE Master |
| Input Voltage / Output Voltage | AC 230V |
| Adjustable Output | 6A – 32A via Bluetooth app |
| Manual Override | Plug-and-charge via side button |
| Input Frequency | 50Hz |
| Max Output Power | 7.4 kW (1 Phase) |
| Max Output Current | 32 Amp |
| Charging Interface Type | IEC 62196-2, SAE J1772 |
| Over Voltage Protection | Yes |
| Under Voltage Protection | Yes |
| Overload Protection | Yes |
| Short Circuit Protection | Yes |
| Earth Leakage Protection | Yes |
| Over-Temperature Protection | Yes |
| Lightning Protection | Yes |
| LCD Screen | 3.5 inch |
| RCD | Type A + 6mA DC |
| LED Indicator | Yes |
| Protection Degree | IP55 |
| Operating Temperature | -40°C to 75°C |
| Relative Humidity | 0–95% |
| Cooling System | Natural air cooling |
| Standby Power Consumption | < 8W |
| Dimensions (W × H × D) | 295 × 195 × 65 mm |
| Weight | 6 kg |
| Mounting Bracket | Wall-mounting bracket included |
| Ground-Mounting Pole | Optional |
| Certifications | CE, TUV, FCC, CSA, RoHS, RCM |
| Warranty | 3 Years |
