The Flex 78SS is a single-sided bioethanol fireplace insert designed to create a striking flame feature in residential and commercial spaces. Featuring a front-facing open side and an all-flame configuration, the fireplace dedicates the entire viewing area to the flame, combining the character of a traditional fireplace with clean, contemporary design.
|
Its true zero-clearance construction allows the Flex 78SS to be integrated into feature walls, cabinetry and custom fireplace settings. Suitable for indoor and outdoor applications, it offers a versatile solution for residential dining rooms, living areas, outdoor entertaining spaces and commercial environments.
| True Zero-Clearance Design
The self-contained, zero-clearance construction provides installation flexibility for builders, architects, interior designers, landscapers and homeowners. Its insert format allows the fireplace to be incorporated into custom feature walls and architectural fireplace settings. |
|
Indoor & Outdoor Application Powered by clean-burning e-NRG ethanol fuel, the Flex 78SS is designed for both indoor and outdoor installation. Ethanol is produced by fermenting renewable plant materials such as sugarcane and corn, providing an alternative to conventional fireplace fuels without requiring traditional gas connections. |
|

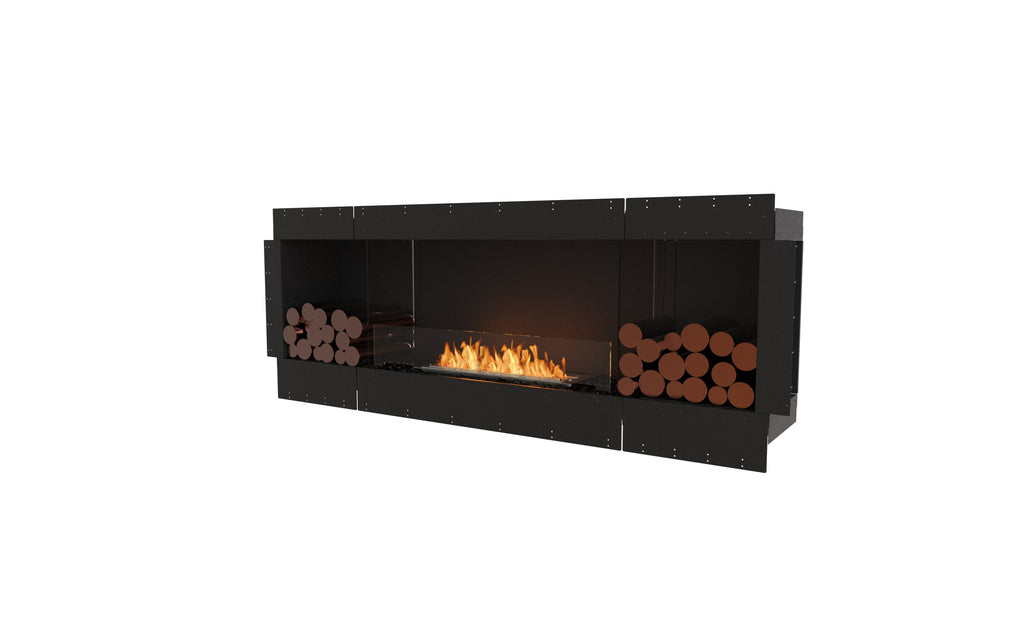

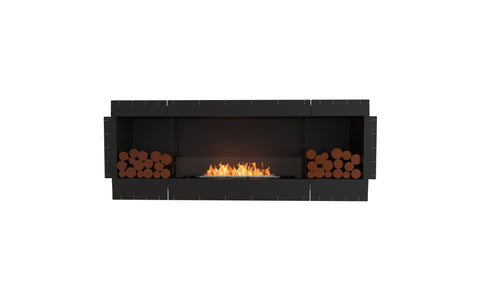

Decorative Box Configuration The Flex 78SS offers optional or included decorative box configurations for select firebox lengths. The box can accommodate non-combustible decorative accessories or be paired with an optional copper-finish log set to create a distinctive visual feature around the flame. |
|
Efficient Heating The Flex 78SS features a high-capacity ethanol burner with a 7-litre fuel capacity. It provides approximately 9–12 hours of burn time and delivers up to 4 kW of thermal output, with an average heating area of approximately 50 m². Its closed combustion system is designed to retain heat within the room, helping maximise the warmth generated by the fireplace without the heat loss associated with conventional vented gas fireplaces. |
|
|
|
Quick & Easy Installation The self-contained design eliminates the need for conventional ventilation and utility connections, providing greater flexibility when planning a fireplace installation. The Flex 78SS can be integrated into custom architectural settings, allowing the surrounding finishes to complement the overall design. |
|
Striking All-Flame Design The generous front viewing area provides an unobstructed presentation of the flame. Its clean lines and minimalist firebox design create a strong architectural feature while maintaining a refined, contemporary appearance. |
|
Included Accessories Each Flex 78SS includes decorative Black Glass Charcoal and an integrated fire screen that sits flush behind the frame, complementing the minimalist design and enhancing the overall flame presentation. |
| Specification | Details |
|---|---|
| Fuel Capacity | 7 L [1.8 Gal] |
| Thermal Output | 14.50 MJ/h – 13,650 BTU/h – 4 kW |
| Burn Time | 9–12 hours |
| Average Heating Area | 50 m² [538 ft²] |
| Minimum Room Volume | 90 m³ [3,178 ft³] |
| Application | Indoor & Outdoor |
| Weight | 108 kg [238 lb] |

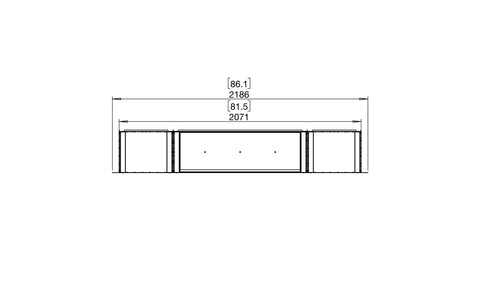

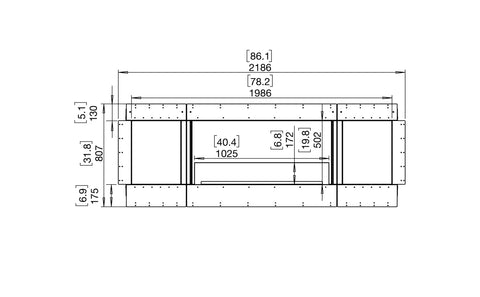

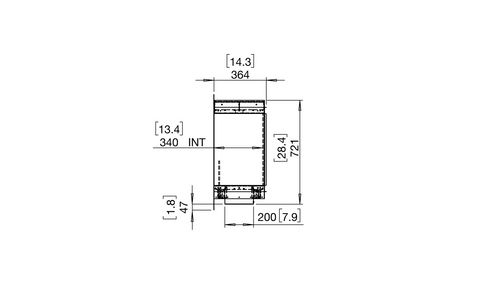

| Model Dimensions | W 2,186 mm [86.1 in] × D 365 mm [14.4 in] × H 807 mm [31.8 in] |
| Viewing Area | W 1,986 mm [78.2 in] × D 340 mm [13.4 in] × H 502 mm [19.8 in] |
| Materials | Mild Steel & Toughened Glass |
| Model Colour | Black |
| Burner Colours | Stainless Steel, Black |
