The Flex 60SS is a single-sided bioethanol fireplace insert designed to create a bold and captivating flame feature in residential and commercial spaces. With a front-facing open side and an all-flame configuration, the design dedicates the entire viewing area to the flame, combining the character of a traditional fireplace with clean, contemporary styling.
|
Its true zero-clearance construction provides exceptional installation flexibility, allowing the fireplace to be integrated into feature walls, cabinetry and custom fireplace settings. Suitable for indoor and outdoor applications, the Flex 60SS offers a versatile way to introduce a striking fire feature into dining rooms, living areas, commercial spaces and other architectural environments.
|
True Zero-Clearance Design The self-contained, zero-clearance construction provides installation freedom for builders, architects, interior designers, landscapers and homeowners. With no conventional chimney or ventilation requirements, the Flex 60SS can be incorporated into a wide range of custom fireplace and feature-wall applications. |
|
Indoor & Outdoor Application Powered by clean-burning e-NRG ethanol fuel, the Flex 60SS is suitable for both indoor and outdoor installation. Ethanol is produced by fermenting renewable plant materials such as sugarcane and corn, providing a convenient alternative to conventional fireplace fuels without requiring utility connections. |
|
Efficient Heating The Flex 60SS is equipped with an XL700 ethanol burner with a 7-litre fuel capacity. It provides approximately 9–12 hours of burn time and delivers up to 4 kW of thermal output, with an average heating area of approximately 50 m². Its closed combustion system is designed to retain heat within the room, helping maximise the warmth produced by the fireplace without the heat loss associated with traditional vented systems. |
|
|
|
Striking All-Flame Design The generous front viewing area provides an unobstructed presentation of the flame, with the entire firebox designed around the visual impact of the fire. Clean lines and the minimalist all-flame configuration create a harmonious blend of traditional fireplace character and contemporary architectural design. |
|

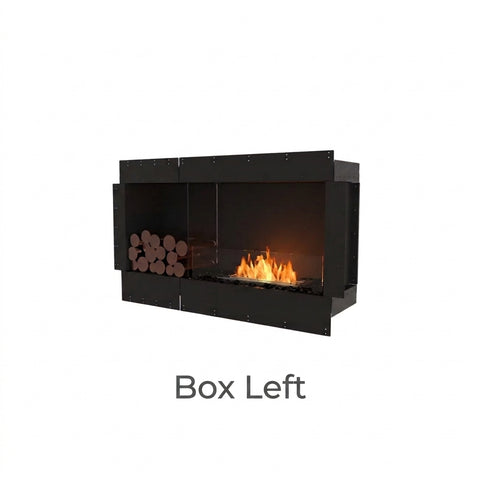

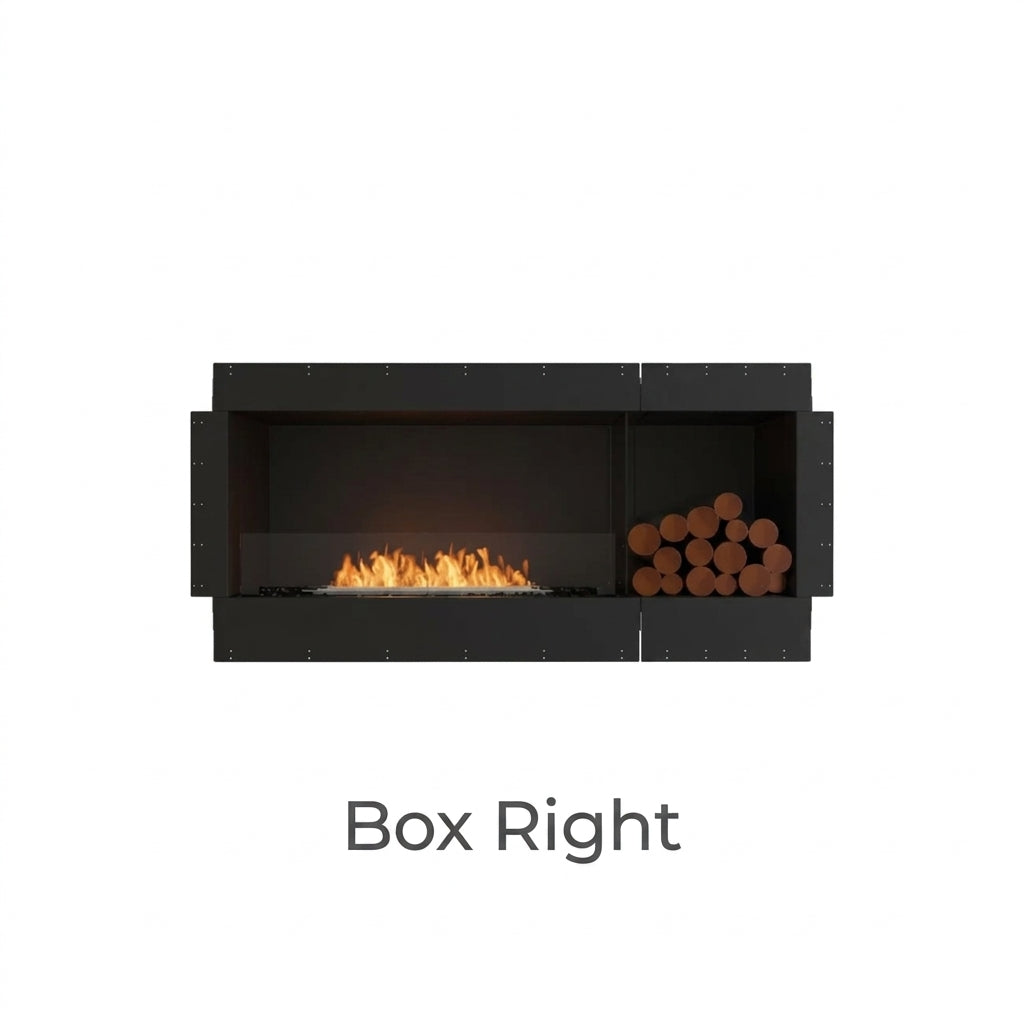

Decorative Box Configuration The Flex 60SS is available with optional or included decorative box configurations for select firebox lengths. The box can be filled with non-combustible decorative accessories or paired with an optional copper-finish log set to create a distinctive visual presentation around the flame. |
|
Quick & Easy Installation The self-contained design eliminates the need for conventional ventilation and utility connections, helping simplify installation. The Flex 60SS can be integrated into custom architectural settings efficiently, allowing the surrounding finishing work to be completed quickly. |
|
|
| Specification | Details |
|---|---|
| Burner Configuration | XL700 |
| Fuel Capacity | 7 L [1.8 Gal] |
| Thermal Output | 14.50 MJ/h – 13,650 BTU/h – 4 kW |
| Burn Time | 9–12 hours |
| Average Heating Area | 50 m² [538 ft²] |
| Minimum Room Volume | 90 m³ [3,178 ft³] |
| Application | Indoor & Outdoor |
| Weight | 83.90 kg [185 lb] |

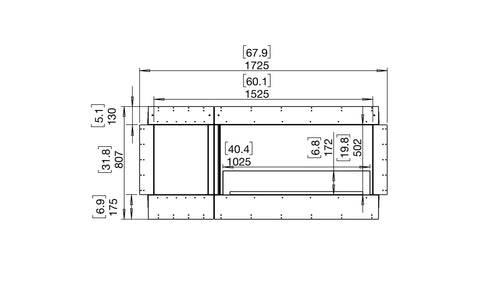

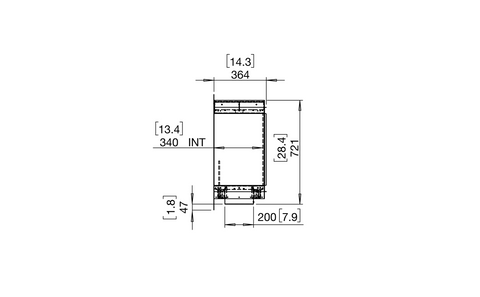

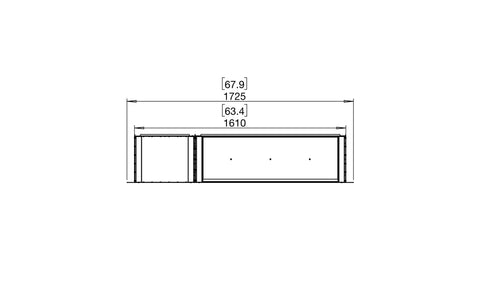

| Model Dimensions | W 1,725 mm [67.9 in] × D 365 mm [14.4 in] × H 807 mm [31.8 in] |
| Viewing Area | W 1,525 mm [60 in] × D 340 mm [13.4 in] × H 502 mm [19.8 in] |
| Materials | Mild Steel & Toughened Glass |
| Model Colour | Black |
| Burner Colours | Stainless Steel, Black |
