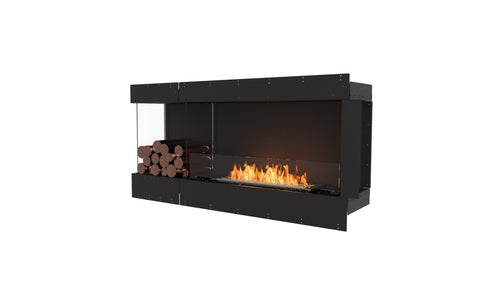

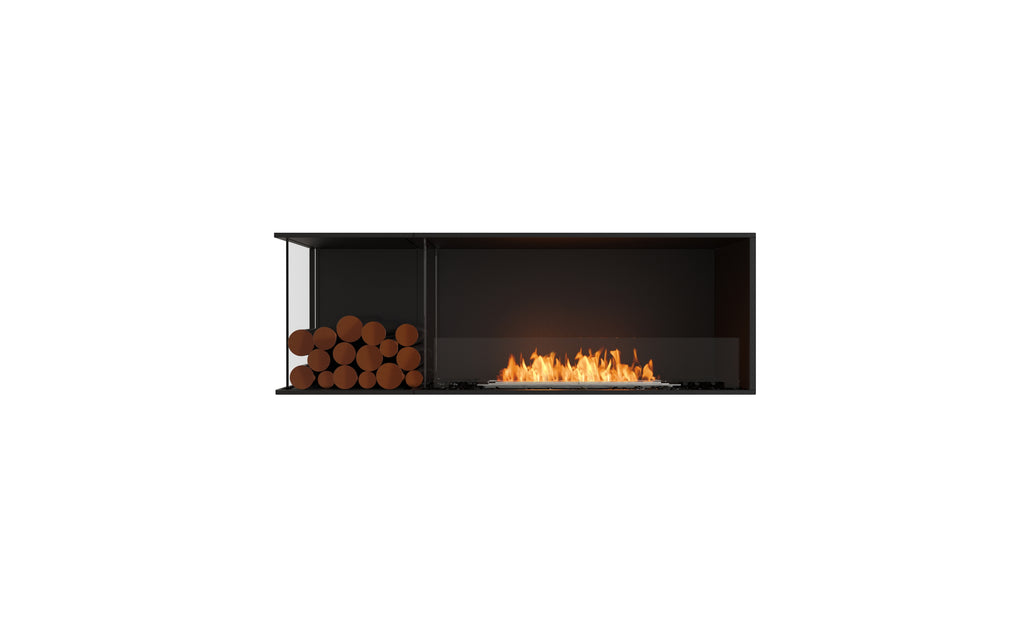

The Flex 60LC is a premium bioethanol fireplace insert designed to make a bold architectural statement with an expansive flame display visible from both the front and left side. Its two-sided corner configuration combines contemporary styling with the natural ambience of a traditional fire, creating an impressive focal point for residential and commercial spaces.
|
Featuring true zero-clearance construction, the Flex 60LC can be integrated into feature walls, custom cabinetry and bespoke fireplace settings. Its generous viewing area and versatile installation options give architects, builders and interior designers greater freedom to create distinctive fireplace designs.
|
Left Corner Design The two-sided configuration allows the flame to be viewed from the front and left, creating a dynamic visual feature that complements corner layouts. The all-flame design dedicates the viewing area to the fire, emphasising its movement and natural beauty. |
|
True Zero-Clearance Construction The self-contained, true zero-clearance design provides flexibility for integration into custom feature walls, cabinetry and architectural fireplace surrounds. Its streamlined construction supports a clean, built-in appearance when installed in accordance with the manufacturer's specifications. |
|
Indoor & Outdoor Application Designed for indoor and outdoor applications, the Flex 60LC operates using e-NRG bioethanol fuel. Its versatile design suits a variety of contemporary living spaces and architectural projects, subject to the manufacturer's installation, ventilation and safety requirements. |
|
Efficient Heating Performance The Flex 60LC features an XL700 ethanol burner with a 7-litre fuel capacity and a thermal output of 4 kW. With a stated burn time of 9–12 hours, it delivers supplementary warmth alongside an impressive flame display, depending on operating conditions. |
|
Optional Decorative Box Configurations Selected configurations can incorporate decorative boxes to create additional styling possibilities within the fireplace. These can be filled with suitable non-combustible decorative accessories or complemented by an optional copper-finish log set, adding texture and visual interest to the installation. |
|
Premium Materials & Finishes The fireplace features a mild steel surround with zinc sealing and a high-temperature powder-coated finish. Its Grade 304 stainless steel ethanol burner is available in stainless steel or with an optional black ceramic coating, allowing the finish to complement the surrounding design. |
Burner Efficiency
|
Specification |
XL700 Burner |
|---|---|
|
Burner Configuration |
XL700 |
|
Fuel Capacity |
7 L |
|
Thermal Output |
14.4 MJ/h – 4 kW |
|
Burn Time |
9–12 hours |
|
Maximum Fuel Consumption |
0.7 L/h |
|
Average Heating Area |
50 m² |
|
Minimum Room Volume |
90 m³ |
Construction & Specifications
|
Specification |
Details |
|---|---|
|
Model |
Flex 60LC |
|
Fireplace Type |
Left Corner Bioethanol Fireplace Insert |
|
Viewing Configuration |
Two-Sided – Front and Left |
|
Application |
Indoor or Outdoor |
|
Weight |
87.1 kg |
|
Overall Dimensions (W × D × H) |
1,667 × 365 × 807 mm |
|
Viewing Area (W × D × H) |
1,567 × 340 × 502 mm |
|
Surround Material |
Mild Steel, Zinc Sealed, High-Temperature Powder Coat |
|
Burner Material |
Grade 304 Stainless Steel |
|
Burner Finish |
Stainless Steel or Optional Black Ceramic Coating |
|
Model Colour |
Black |
|
Burner Colours |
Stainless Steel or Black |
|
Decorative Box Options |
Available for selected configurations |
|
Optional Decorative Accessory |
Copper-Finish Log Set |
Installation Manual and Clearances
Box Left:
