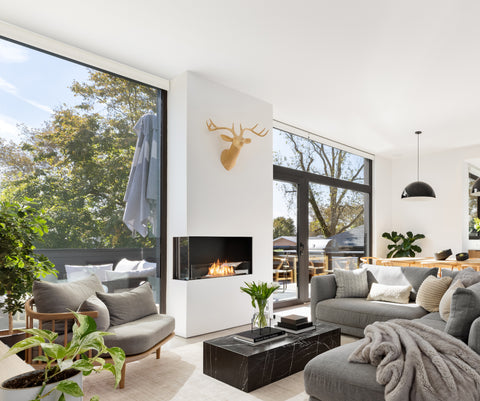

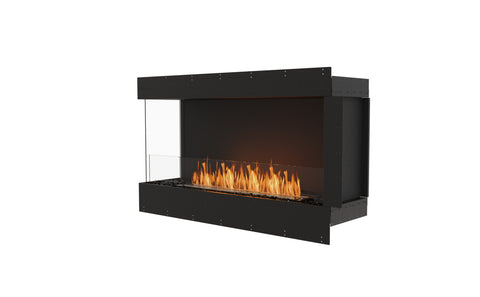

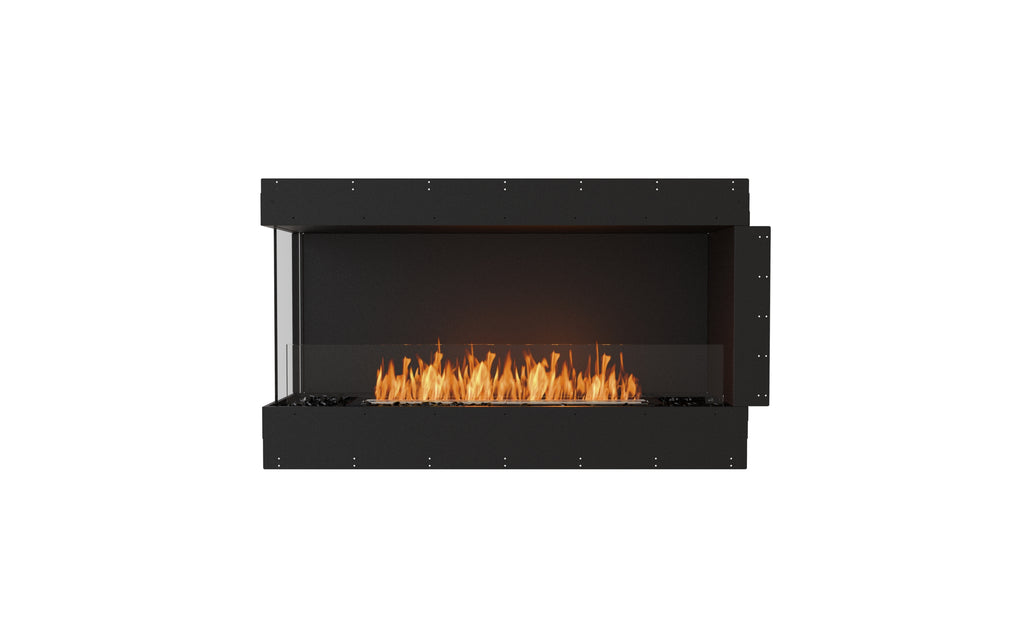

The Flex 50LC is a contemporary bioethanol fireplace insert designed to create an impressive corner fire feature with views from both the front and left side. Its expansive viewing area showcases the all-flame design, making the fireplace a striking focal point in modern residential and commercial spaces.
|
With its clean architectural lines and true zero-clearance design, the Flex 50LC offers flexibility for integration into feature walls, custom cabinetry and bespoke fireplace settings. Its combination of contemporary styling and natural flame ambience makes it a sophisticated choice for architectural projects.
|
Left Corner Design Featuring two open sides, the Flex 50LC allows the flame to be enjoyed from the front and left, creating a dynamic visual feature that works beautifully with corner layouts. The all-flame configuration dedicates the viewing area to the captivating fire display. |
|
True Zero-Clearance Construction The self-contained, true zero-clearance design supports integration into custom feature walls, cabinetry and bespoke fireplace surrounds. This flexibility allows architects, builders and interior designers to incorporate the fireplace into a variety of design concepts, subject to the manufacturer's installation specifications. |
|
Indoor & Outdoor Application Designed for versatile architectural applications, the Flex 50LC can complement a range of contemporary living spaces. Installation should follow the manufacturer's requirements for the intended setting, including applicable ventilation, clearance and safety provisions. |
|
Efficient Heating Performance With a 9-litre fuel capacity and a thermal output of 4.4 kW, the Flex 50LC delivers supplementary warmth alongside its impressive flame display. Its stated burn time of 8–13 hours provides extended ambience, depending on operating conditions. |
|
Contemporary Materials & Finishes Constructed from mild steel and toughened glass, the Flex 50LC features a refined black surround. The burner is available in stainless steel or black, offering finish options to suit different architectural and interior design schemes. |
Burner Efficiency
|
Specification |
Details |
|---|---|
|
Fuel Capacity |
9 L (2.4 US gal) |
|
Average Heating Area |
60 m² (646 ft²) |
|
Minimum Room Volume |
110 m³ (3,885 ft³) |
|
Burn Time |
8–13 hours |
|
Thermal Output |
16 MJ/h – 15,000 BTU/h – 4.4 kW |
Construction & Specifications
|
Specification |
Details |
|---|---|
|
Model |
Flex 50LC |
|
Fireplace Type |
Left Corner Bioethanol Fireplace Insert |
|
Viewing Configuration |
Two-Sided – Front and Left |
|
Weight |
71.60 kg (158 lb) |
|

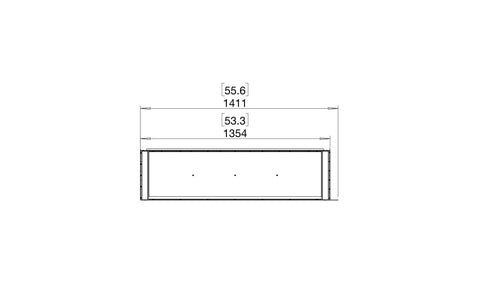

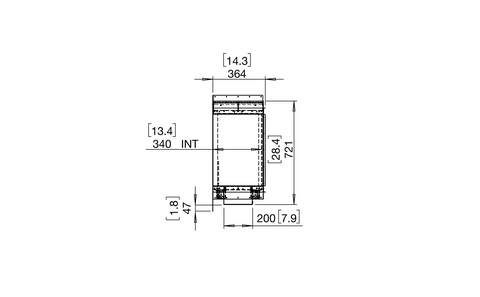

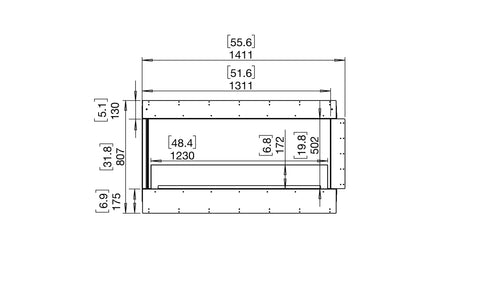

Overall Dimensions (W × D × H) |
1,411 × 365 × 807 mm (55.6 × 14.4 × 31.8 in) |
|
Viewing Area (W × D × H) |
1,311 × 340 × 502 mm (51.6 × 13.4 × 19.8 in) |
|
Materials |
Mild Steel and Toughened Glass |
|
Model Colour |
Black |
|
Burner Colours |
Stainless Steel or Black |
