The Flex 18LC is a contemporary bioethanol fireplace insert designed to showcase the beauty of a real flame from two perspectives. Its left-corner configuration features two open sides, allowing the fire to be viewed from the front and left, creating a striking architectural feature in modern residential and commercial spaces.
|
With its clean lines, all-flame design and true zero-clearance construction, the Flex 18LC offers flexibility for integration into feature walls, custom cabinetry and bespoke fireplace settings. Its compact proportions make it an elegant choice for projects where design versatility and visual impact are equally important.
|
Left Corner Design
The two-sided viewing arrangement creates a distinctive corner fireplace feature, allowing the flame to be enjoyed from both the front and left side. This configuration gives architects, builders and interior designers greater freedom to work with different room layouts. |
|
True Zero-Clearance Construction The self-contained, true zero-clearance design supports integration into custom fireplace surrounds, feature walls and cabinetry, offering greater flexibility for architectural and interior design projects. Installation must comply with the manufacturer's specifications and applicable requirements. |
|
Indoor & Outdoor Application Designed for indoor and outdoor applications, the Flex 18LC operates using e-NRG bioethanol fuel. Its versatile design makes it suitable for a range of residential and commercial environments, subject to the manufacturer's installation and ventilation requirements. |
|
|
|
Efficient Heating Performance The Flex 18LC features an AB3 ethanol burner with a 2.5-litre fuel capacity and a thermal output of 1.7 kW. With a stated burn time of 8–11 hours, it provides an atmospheric flame display alongside supplementary warmth. |
|
Streamlined Installation The self-contained fireplace design avoids the need for conventional gas connections or a traditional chimney flue. Installation should be completed in accordance with the manufacturer's guidelines, including all required clearances, ventilation and safety provisions. |
Burner Efficiency
|
Fuel Capacity |
2.5 L (0.7 US gal) |
|
Average Heating Area |
20 m² (215 ft²) |
|
Minimum Room Volume |
40 m³ (1,413 ft³) |
|
Burn Time |
8–11 hours |
|
Thermal Output |
6.1 MJ/h – 5,800 BTU/h – 1.7 kW |
Construction & Specifications
|
Specification |
Details |
|---|---|
|
Model |
Flex 18LC |
|
Fireplace Type |
Left Corner Bioethanol Fireplace Insert |
|
Viewing Configuration |
Two-Sided – Front and Left |
|
Weight |
33 kg (72.75 lb) |
|

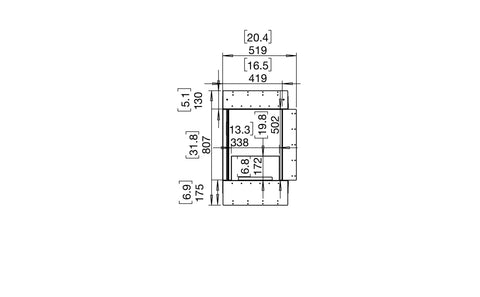

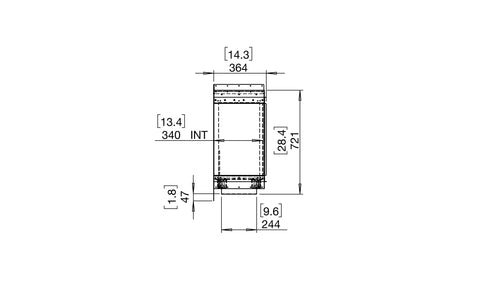

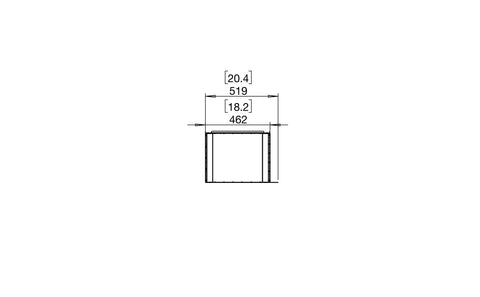

Overall Dimensions (W × D × H) |
519 × 365 × 807 mm (20.4 × 14.4 × 31.8 in) |
|
Viewing Area (W × D × H) |
419 × 340 × 502 mm (16.5 × 13.4 × 19.8 in) |
|
Materials |
Mild Steel and Toughened Glass |
|
Model Colour |
Black |
|
Burner Colours |
Stainless Steel or Black |
|
Application |
Indoor or Outdoor |
Installation Manual and Clearances
