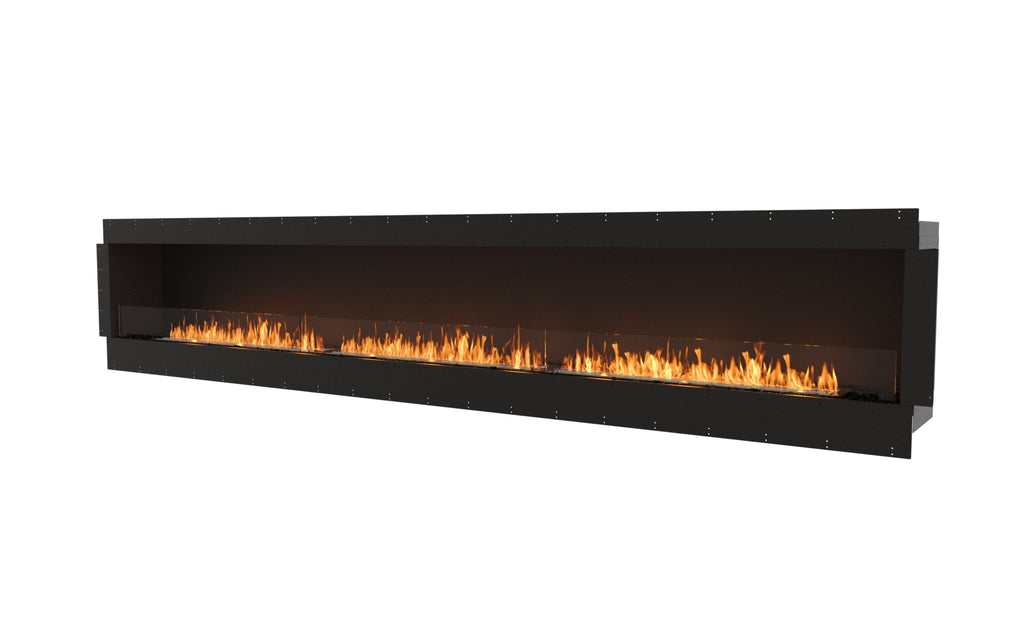

The Flex 158SS is a statement-making bioethanol fireplace insert designed to bring contemporary elegance and captivating flame visuals to residential and commercial spaces. Its single-sided design showcases the flame from the front, with an expansive viewing area dedicated to the striking, uninterrupted fire display.
|
Featuring a true zero-clearance design, the Flex 158SS can be integrated into feature walls, custom cabinetry and bespoke fireplace settings. Suitable for indoor and outdoor applications, it combines clean architectural lines with the warmth and ambience of a traditional fireplace.
|
True Zero-Clearance Design Designed for seamless integration into custom architectural settings, the Flex 158SS allows the fireplace to become a refined focal point within feature walls, cabinetry and bespoke fireplace installations. |
|

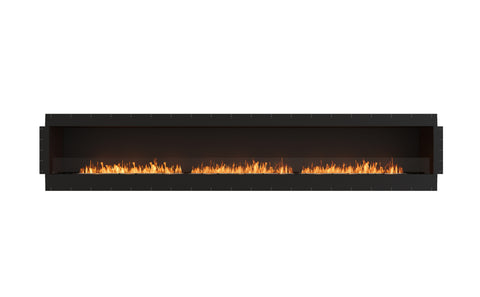

Expansive Single-Sided Flame The generous front-facing viewing area creates a dramatic flame display, with the all-flame configuration emphasising the natural movement of the fire and complementing contemporary interior designs. |
|
Indoor & Outdoor Application Suitable for both indoor and outdoor settings, the Flex 158SS offers versatile design possibilities for residential living areas, dining rooms and commercial environments. Installation must follow the manufacturer's requirements for the intended application. |
|
|
|

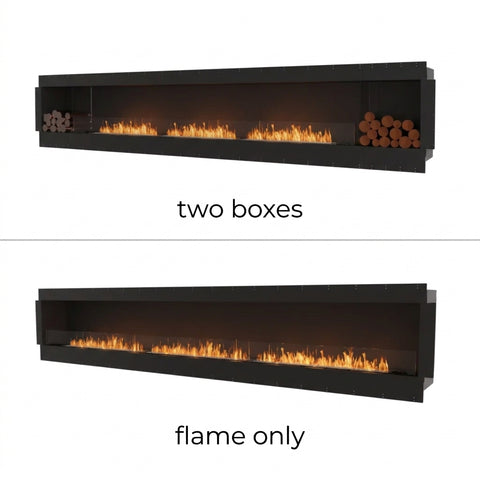

Flexible Burner Configurations The Flex 158SS accommodates two burner configurations to suit different design preferences. Choose the All Flame configuration for a continuous flame presentation or the Two Boxes configuration for a segmented visual effect. |
|
Premium Materials & Finishes The fireplace features a mild steel surround with zinc sealing and a high-temperature powder-coated finish. Its Grade 304 stainless steel ethanol burners are available in stainless steel or an optional black ceramic coating, allowing the finish to complement the surrounding design. |
Burner Efficiency
|
Specification |
All Flame |
Two Boxes |
|---|---|---|
|
Burner Configuration |
3 × XL1200 |
3 × XL900 |
|
Total Fuel Capacity |
30 L |
27 L |
|
Thermal Output |
48.4 MJ/h – 13 kW |
47.48 MJ/h – 13 kW |
|
Burn Time |
9–14 hours |
8–13 hours |
|
Individual Burner Capacity |
10 L each |
9 L each |
|
Maximum Fuel Consumption |
2.61 L/h |
2.4 L/h |
|
Average Heating Area |
195 m² |
180 m² |
|
Minimum Room Volume |
345 m³ |
330 m³ |
Construction & Specifications
|
Specification |
Details |
|---|---|
|
Model |
Flex 158SS |
|
Fireplace Type |
Single-Sided Bioethanol Fireplace Insert |
|
Application |
Indoor or Outdoor |
|

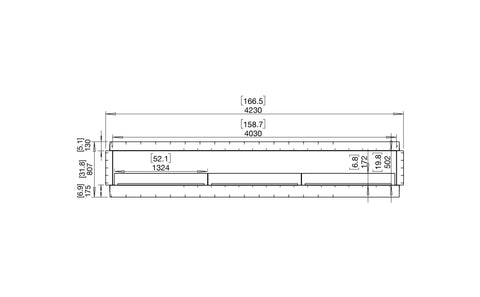

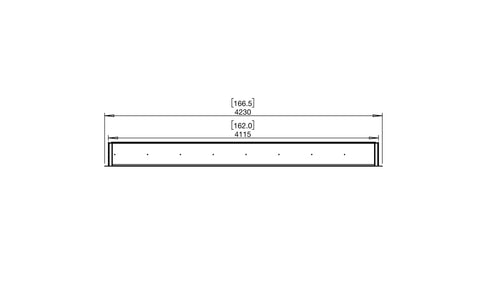

Overall Dimensions (W × D × H) |
4,230 × 365 × 807 mm |
|

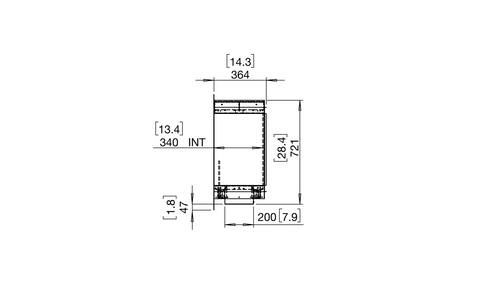

Viewing Area (W × D × H) |
4,030 × 340 × 502 mm |
|
Weight |
222.1 kg |
|
Surround Material |
Mild Steel, Zinc Sealed, High-Temperature Powder Coat |
|
Burner Material |
Grade 304 Stainless Steel |
|
Burner Finish |
Stainless Steel or Optional Black Ceramic Coating |
|
Model Colour |
Black |
Installation Manual and Clearances
