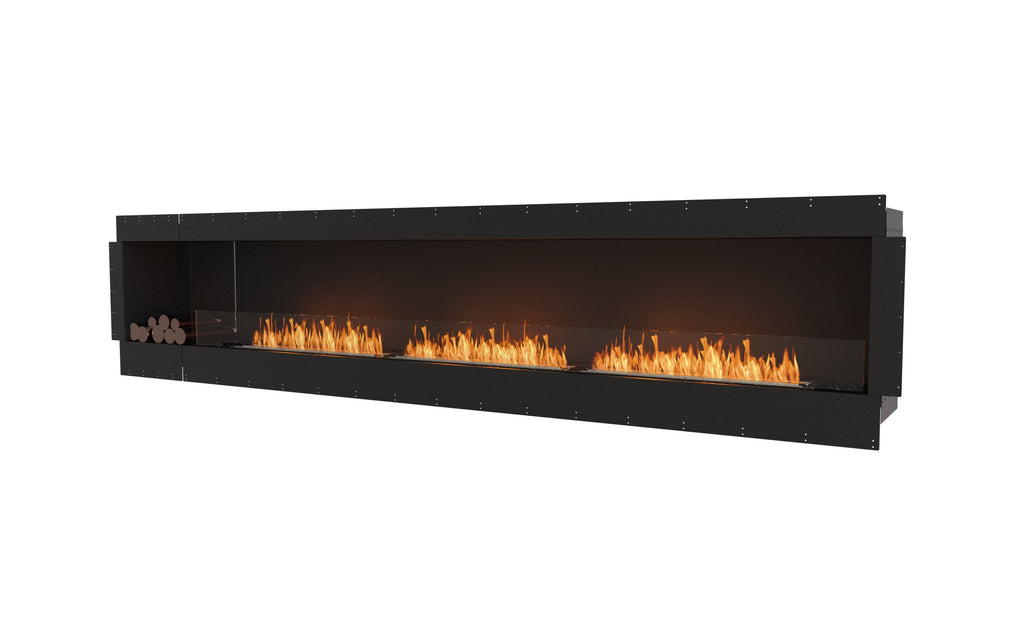

The Flex 140SS Single Sided Fireplace is an expansive bioethanol fireplace insert designed to create a dramatic architectural feature in large residential and commercial spaces. Its single-sided configuration presents the flame from the front, while the minimalist frame and all-flame design combine contemporary styling with the timeless appeal of a traditional fireplace.
|
With an impressive 3570 mm-wide viewing area, the Flex 140SS is designed for statement installations in feature walls, custom cabinetry and bespoke fireplace settings. Its true zero-clearance construction provides flexibility for architects, builders, interior designers and homeowners developing distinctive indoor or outdoor spaces.
|
True Zero-Clearance Design The self-contained, zero-clearance construction offers flexibility for integrating the fireplace into a range of custom architectural settings. Its streamlined design makes it suitable for large feature walls and contemporary fireplace installations. |
|
Indoor & Outdoor Application Powered by e-NRG ethanol fuel, the Flex 140SS is suitable for indoor and outdoor applications. Its self-contained burner system provides an alternative to conventional fireplaces that require gas connections and traditional flues. |
|
Industry-Exclusive Decorative Box Optional decorative box configurations are available to suit selected installation layouts. These boxes can accommodate non-combustible decorative accessories or an optional log set with a distinctive copper finish, allowing the fireplace appearance to complement the surrounding design. |
|
|
|
Flexible Burner Configurations The Flex 140SS offers two burner configurations to accommodate different design preferences:
Each option provides a different balance of flame presentation, fuel capacity and heating performance. |
|
High-Performance Ethanol Heating Depending on the selected burner configuration, the Flex 140SS delivers thermal output of up to 13 kW, with fuel capacities ranging from 20 to 27 litres. Its expansive format makes it suitable for large spaces where the fireplace is intended to serve as a prominent architectural feature. |
|
Specification |
Details |
|---|---|
|
Weight |
195.2 kg |
|

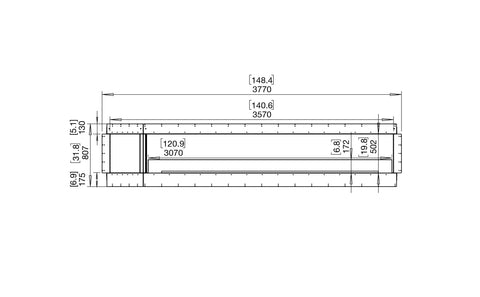

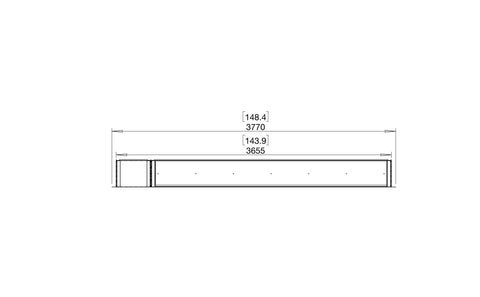

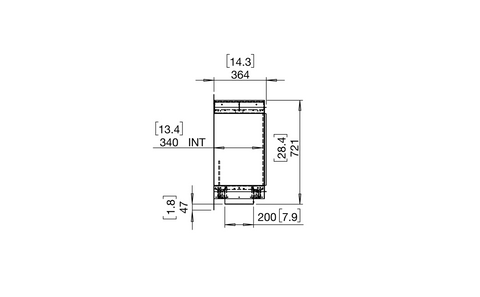

Model Dimensions |
W 3770 mm × D 365 mm × H 807 mm |
|
Viewing Area |
W 3570 mm × D 340 mm × H 502 mm |
|
Application |
Indoor & Outdoor |
|
Surround Material |
Mild Steel (Zinc Sealed, High-Temperature Powder Coat) |
|
Burner Material |
Grade 304 Stainless Steel |
|
Optional Burner Finish |
Black Ceramic Coating |
|
Model Colour |
Black |
|
Burner Colours |
Stainless Steel, Black |
Burner Efficiency
|
Burner Configuration |
3 × XL900 |
2 × XL1200 |
|
Fuel Capacity |
27 L |
20 L |
|
Thermal Output |
47.48 MJ/h – 13 kW |
32.26 MJ/h – 9 kW |
|
Burn Time |
8–13 hours |
9–14 hours |
|
Maximum Fuel Consumption |
2.4 L/h |
1.74 L/h |
|
Average Heating Area |
180 m² |
130 m² |
|
Minimum Room Volume |
330 m³ |
230 m³ |
Installation Manual and Clearances
