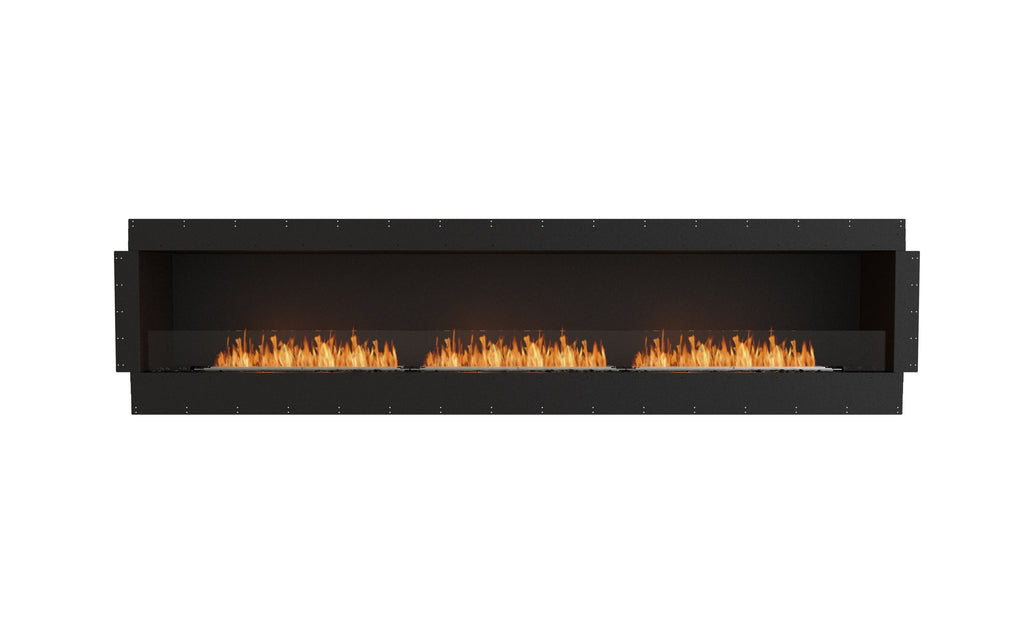

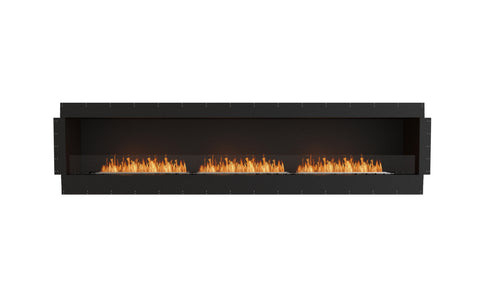

The Flex 122SS Single Sided Fireplace is an impressive linear bioethanol fireplace insert designed to create a dramatic architectural centrepiece in residential and commercial spaces. Featuring a single front-facing viewing side and a clean, all-flame configuration, it combines the timeless appeal of a traditional fireplace with contemporary design.
|
With an expansive 3110 mm-wide viewing area, the Flex 122SS is ideal for feature walls, custom cabinetry and large-scale fireplace installations. Its true zero-clearance construction provides design flexibility for architects, builders, interior designers and homeowners creating distinctive indoor or outdoor environments.
|
True Zero-Clearance Design The self-contained, zero-clearance construction offers flexibility for integrating the fireplace into bespoke architectural settings. Its streamlined design allows it to complement contemporary interiors, feature walls and custom fireplace surrounds. |
|
Indoor & Outdoor Application Powered by e-NRG ethanol fuel, the Flex 122SS is suitable for indoor and outdoor applications. Its self-contained burner system offers an alternative to conventional fireplaces that require gas connections and traditional flues. |
|
|
|
Industry-Exclusive Decorative Box Selected configurations support optional or included decorative boxes, allowing the fireplace design to be customised to suit the installation. The boxes can accommodate non-combustible decorative accessories or an optional log set with a distinctive copper finish. |
|

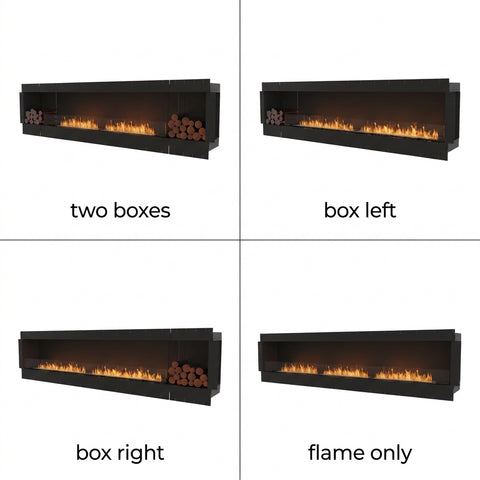

Flexible Burner Configurations The Flex 122SS supports multiple burner configurations to suit different design preferences and heating requirements. Choose from an expansive all-flame arrangement, a left- or right-positioned decorative box configuration, or a dual-box arrangement. |
|
High-Performance Ethanol Heating Depending on the selected burner configuration, the Flex 122SS offers fuel capacities from 18 to 27 litres and thermal outputs of 9–13 kW. This flexibility allows the fireplace to deliver a substantial flame display and heating performance suited to larger spaces. |
|
Specification |
Details |
|---|---|
|
Weight |
172 kg [378 lb] |
|

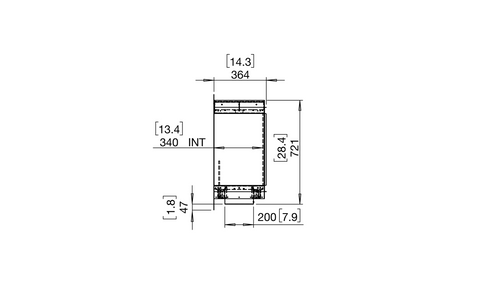

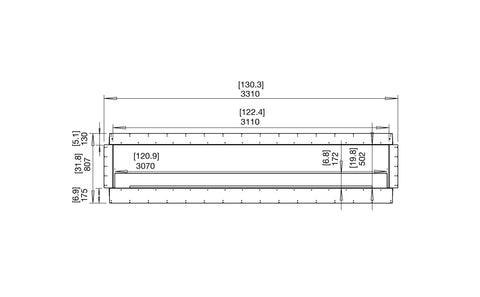

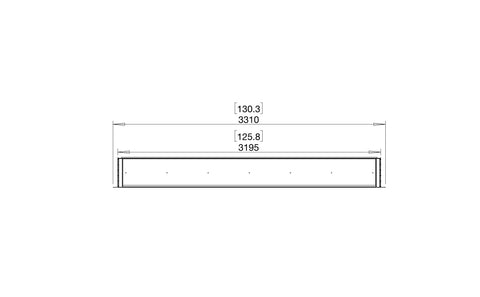

Model Dimensions |
W 3310 mm × D 365 mm × H 807 mm |
|
Viewing Area |
W 3110 mm × D 340 mm × H 502 mm |
|
Application |
Indoor & Outdoor |
|
Surround Material |
Mild Steel (Zinc Sealed, High-Temperature Powder Coat) |
|
Burner Material |
Grade 304 Stainless Steel |
|
Optional Burner Finish |
Black Ceramic Coating |
|
Model Colour |
Black |
|
Burner Colours |
Stainless Steel, Black |
Burner Efficiency
|
Specification |
All Flame |
Box Left/Right |
Two Boxes |
|---|---|---|---|
|
Burner Configuration |
3 × XL900 |
2 × XL1200 |
2 × XL900 |
|
Fuel Capacity |
27 L |
20 L |
18 L |
|
Thermal Output |
47.48 MJ/h – 13 kW |
32.26 MJ/h – 9 kW |
31.65 MJ/h – 9 kW |
|
Burn Time |
8–13 hours |
9–14 hours |
8–13 hours |
|
Maximum Fuel Consumption |
2.4 L/h |
1.74 L/h |
1.6 L/h |
|
Average Heating Area |
180 m² |
130 m² |
120 m² |
|
Minimum Room Volume |
330 m³ |
230 m³ |
220 m³ |
Installation Manual and Clearances
