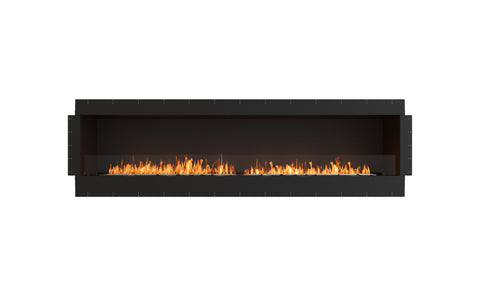

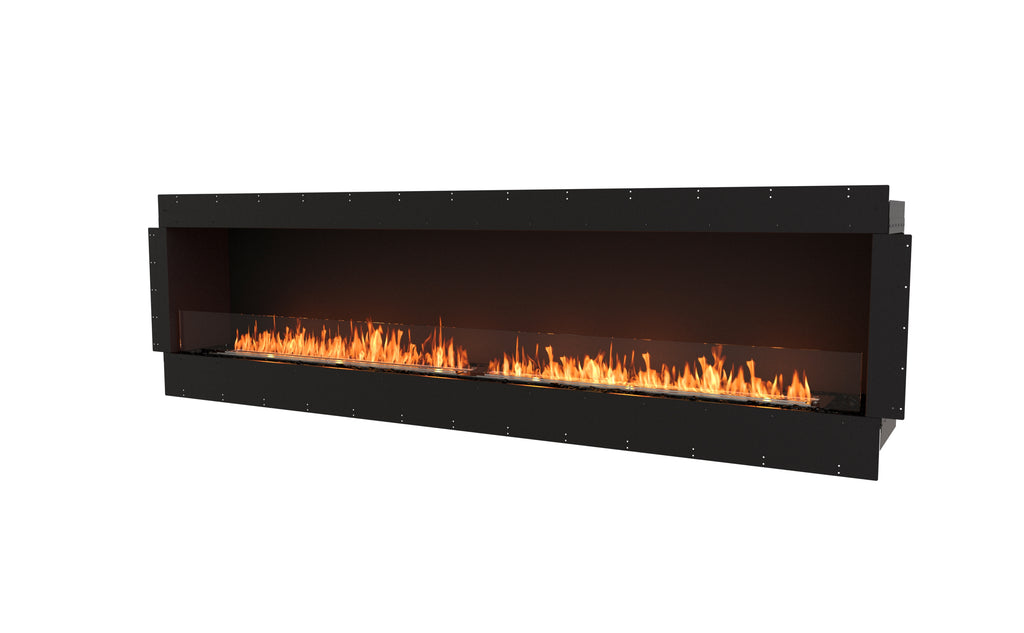

The Flex 104SS Single Sided Fireplace is an expansive bioethanol fireplace insert designed to create a dramatic, linear flame feature in residential and commercial spaces. Its single-sided configuration provides a front-facing view of the flame, while the clean lines and all-flame design combine contemporary architectural styling with the timeless appeal of a traditional fireplace.
|
With its impressive 2650 mm-wide viewing area, the Flex 104SS creates a striking centrepiece for feature walls, custom cabinetry and bespoke fireplace installations. Its true zero-clearance construction offers design flexibility for architects, builders, interior designers and homeowners seeking a distinctive fireplace solution.
|
True Zero-Clearance Design
The self-contained, zero-clearance construction provides flexibility for integrating the fireplace into a variety of custom architectural settings. Its streamlined design allows the surrounding installation to be tailored to suit the space and overall interior concept. |
|
Indoor & Outdoor Application Powered by e-NRG ethanol fuel, the Flex 104SS is suitable for indoor and outdoor applications. Its self-contained burner provides an alternative to conventional fireplace systems that require gas connections and traditional flues. |
|

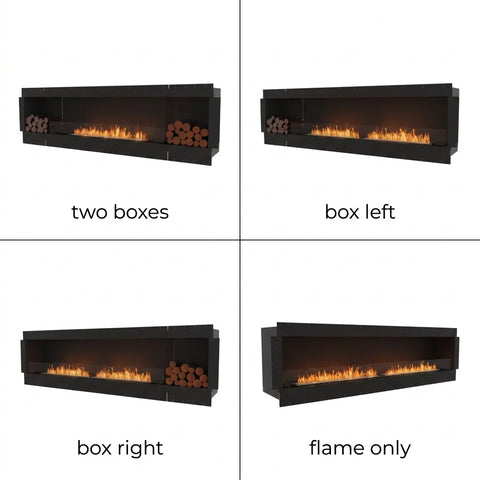

Industry-Exclusive Decorative Box Optional or included decorative box configurations are available for selected firebox lengths. The box can accommodate non-combustible decorative accessories or an optional log set with an eye-catching copper finish, allowing the fireplace appearance to be tailored to the surrounding design. |
|
|
|

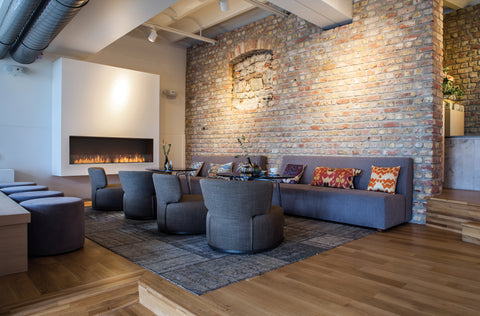

Impressive Linear Flame Display The exceptionally wide viewing area places the flame at the centre of the design. Its minimalist frame creates a seamless architectural appearance, making the Flex 104SS suitable for large living areas, hospitality venues and statement commercial interiors. |
|
High-Output Ethanol Heating The Flex 104SS features a 20-litre fuel capacity and delivers up to 9 kW of thermal output. With a burn time of approximately 9–14 hours and an average heating area of up to 130 m², it combines an expansive flame display with substantial heating performance. |
|
Specification |
Details |
|---|---|
|
Fuel Capacity |
20 L [5.3 Gal] |
|
Average Heating Area |
130 m² [1,399 ft²] |
|
Minimum Room Volume |
230 m³ [8,122 ft³] |
|
Burn Time |
9–14 hours |
|
Thermal Output |
34 MJ/h – 30,580 BTU/h – 9 kW |
|
Weight |
146 kg [322 lb] |
|

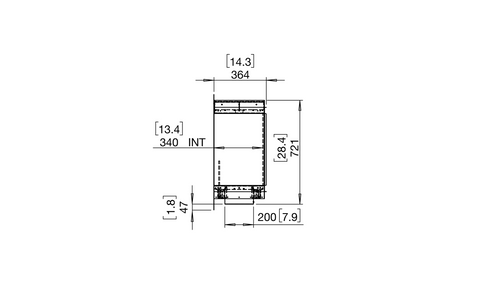

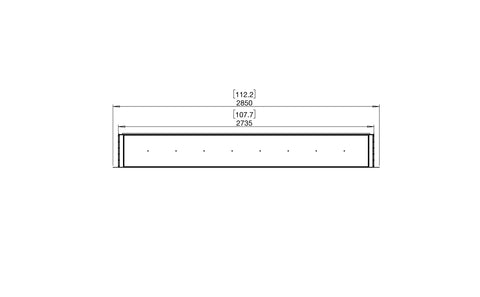

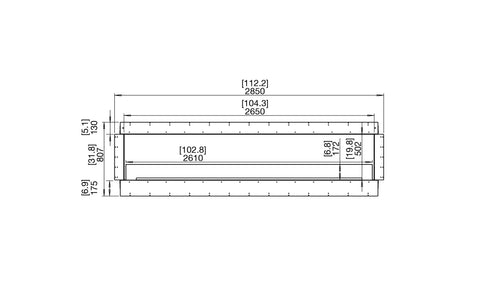

Model Dimensions |
W 2850 mm × D 365 mm × H 807 mm |
|
Viewing Area |
W 2650 mm × D 340 mm × H 502 mm |
|
Materials |
Mild Steel & Toughened Glass |
|
Model Colour |
Black |
|
Burner Colours |
Stainless Steel, Black |
Installation Manual and Clearances
