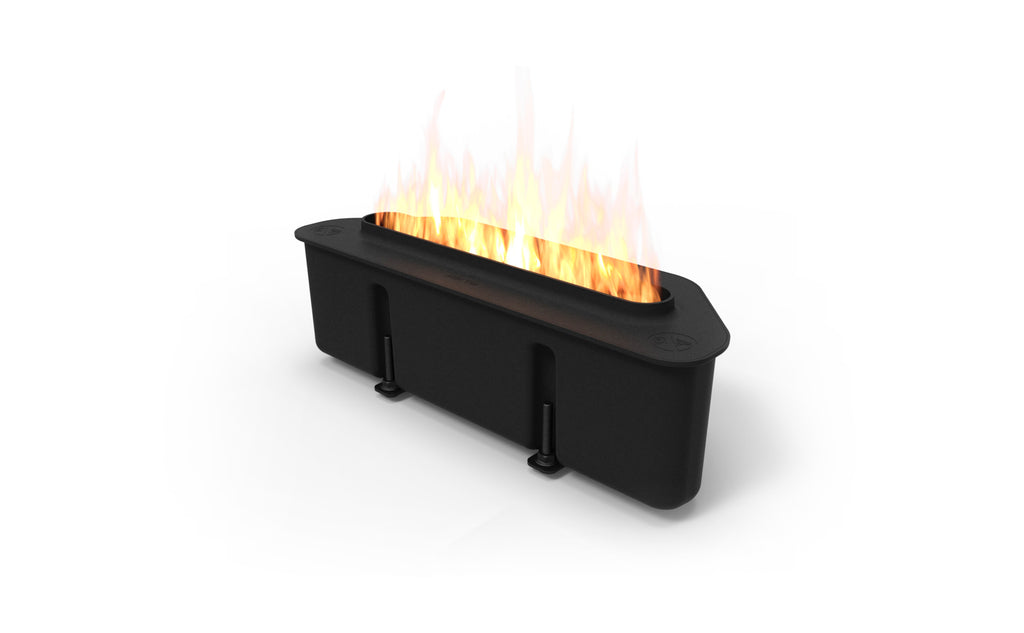

| VB2 Ethanol Burner – EcoSmart Fire |
|---|
|

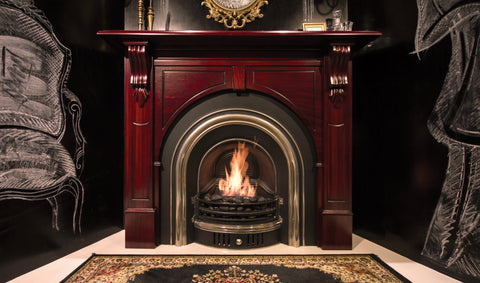

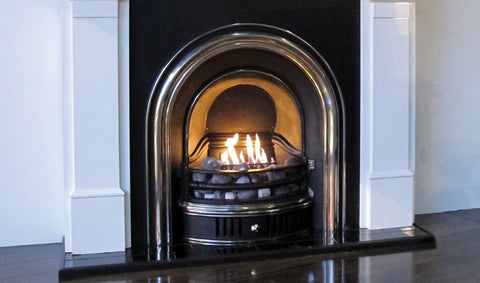

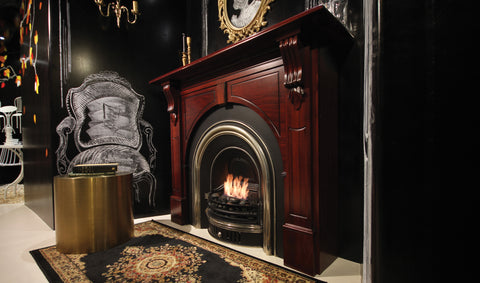

Designed for Existing Fireplaces The VB2 Ethanol Burner is purpose-designed to transform traditional fireplaces into clean-burning bioethanol fires. Its minimalist design makes it suitable for integrating into Edwardian, Federation, Art Deco, Art Nouveau and other existing fireplace styles. |
|
Easy Placement & Adjustable Height The VB2 is simply placed within the existing fireplace grate. Adjustable feet allow the burner to be levelled and raised to suit the depth of the grate, providing greater flexibility during installation. |
|
|
|
Safe & Efficient Design Finished in a high-temperature black powder coat, the VB2 is designed to blend seamlessly with traditional fireplace settings. Internal features including vertical baffles, aspiration vents and dense padding support efficient and consistent operation. |
|
Low Maintenance Operation A simple lid extinguishes the flame and covers the burner opening when not in use, helping prevent dust and debris from entering the fuel tank. The elevated accessory exclusion zone helps keep accessories clear of the flame and shut-off area, while the dedicated filling point supports controlled refuelling. |
| Key Benefits |
|---|
|
Specifications
| Specification | Details |
|---|---|
| Model | VB2 |
| Fuel Capacity | 2 L [0.5 Gal] |
| Average Heating Area | 15 m² [161 ft²] |
| Minimum Room Volume | 45 m³ [1,589 ft³] |
| Burn Time | 6 hours |
| Thermal Output | 7.2 MJ/h – 6,180 BTU/h – 2.5 kW |
| Weight | 1.8 kg [4 lb] |
| Dimensions | L 330 mm × W 110 mm × D 113 mm |
| Application | Indoor |
| Material | Grade 304 Stainless Steel |
| Finish | Black, high-temperature powder coat |
