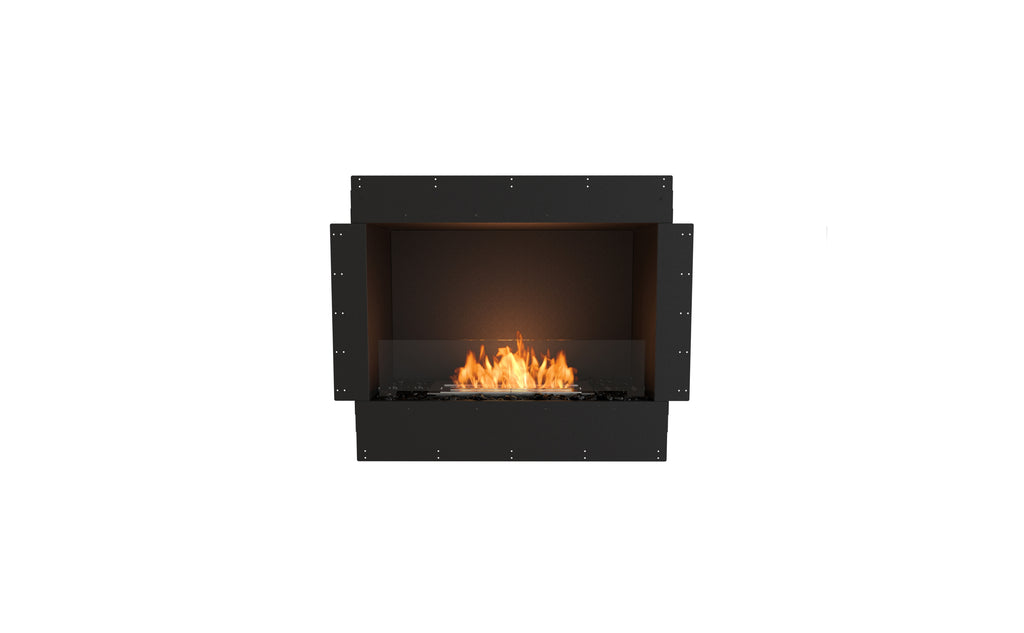

The Flex 32SS is a single-sided bioethanol fireplace insert designed to create a bold flame feature in residential and commercial spaces. With a front-facing open side and an all-flame configuration, the design dedicates the viewing area to the flame, combining clean contemporary lines with the familiar character of a traditional fireplace.
|

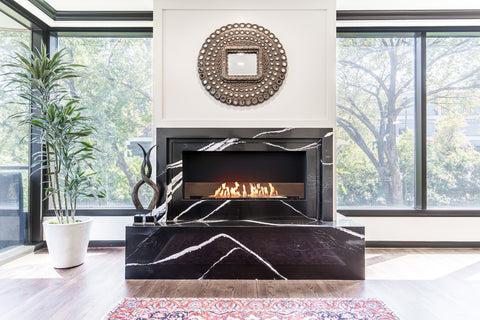

Its true zero-clearance construction allows the Flex 32SS to be integrated into feature walls, cabinetry and custom fireplace settings. Suitable for both indoor and outdoor applications, it offers a flexible way to incorporate a striking fire feature into a wide range of architectural spaces.
| True Zero-Clearance Design
The self-contained zero-clearance construction provides installation flexibility for builders, architects, interior designers, landscapers and homeowners. Its insert format makes it suitable for custom fireplace and feature-wall applications. |
|
Indoor & Outdoor Application Powered by e-NRG ethanol fuel, the Flex 32SS is designed for indoor or outdoor installation. Its self-contained burner eliminates the need for conventional gas connections while providing a dedicated flame feature for modern living spaces. |
|
Efficient Heating The Flex 32SS incorporates an XL500 ethanol burner with a 5-litre fuel capacity. It provides approximately 10–13 hours of burn time and delivers up to 3 kW of thermal output, with an average heating area of approximately 40 m². |
|
Striking All-Flame Design The generous front viewing area provides an unobstructed presentation of the flame. Its clean lines and minimalist firebox design allow the fireplace to become a strong architectural feature while maintaining a refined appearance. |
|
Included Accessories Each Flex 32SS includes decorative Black Glass Charcoal and an integrated fire screen that sits flush behind the frame. |
|
| Specification | Details |
|---|---|
| Burner Configuration | XL500 |
| Fuel Capacity | 5 L |
| Thermal Output | 12.06 MJ/h – 3 kW |
| Burn Time | 10–13 hours |
| Maximum Fuel Consumption | 0.5 L/h |
| Average Heating Area | 40 m² |
| Minimum Room Volume | 80 m³ |
| Application | Indoor & Outdoor |
| Weight | 45.7 kg |

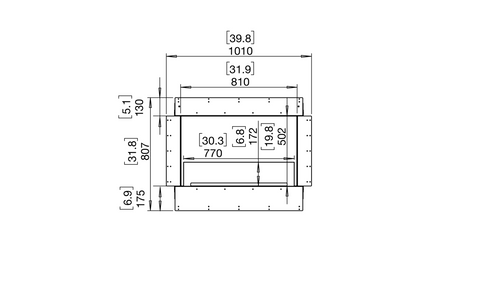

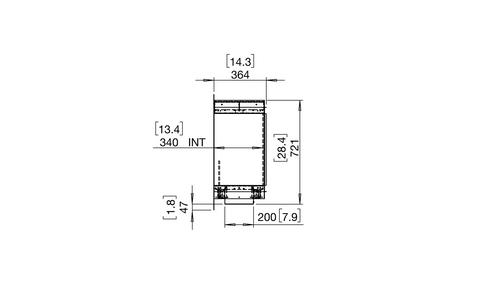

| Model Dimensions | W 1,010 mm × D 365 mm × H 807 mm |
| Viewing Area | W 810 mm × D 340 mm × H 502 mm |
| Surround Material | Mild Steel (Zinc Sealed, High-Temperature Powder Coat) |
| Burner Material | Grade 304 Stainless Steel |
| Burner Finish | Optional Black Ceramic Coating |
| Model Colour | Black |
| Burner Colours | Stainless Steel, Black |
Installation Manual
