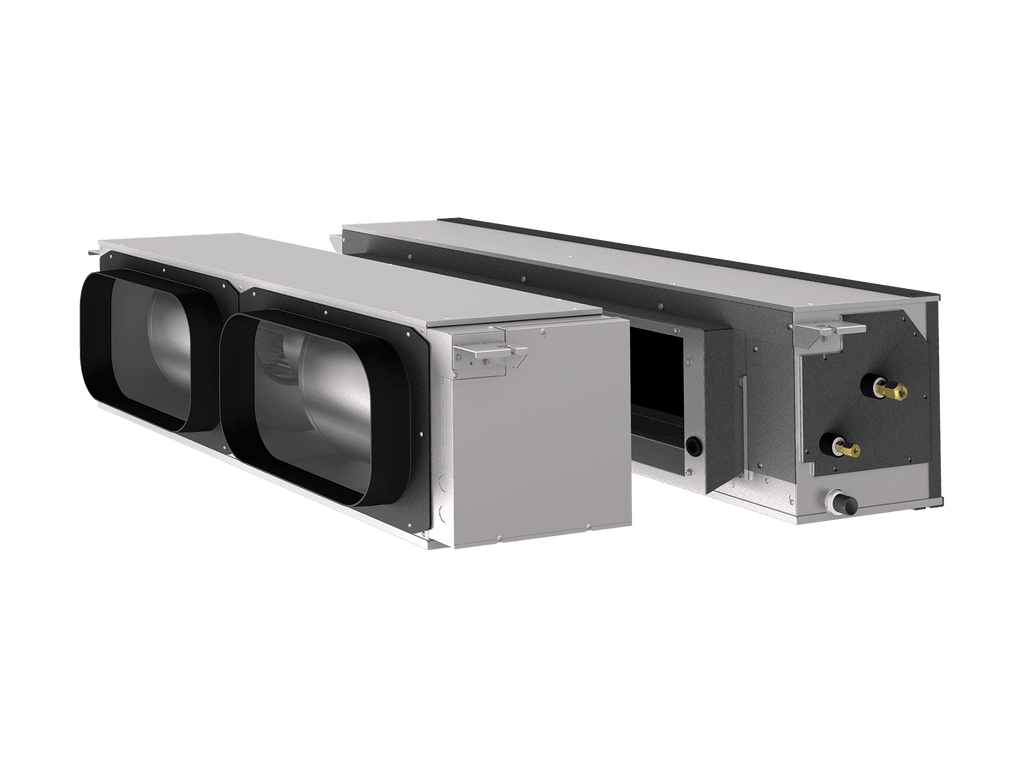

Keep your home at the ideal temperature all year long with the PEA-M160HAA ducted air conditioning unit, with a 2-piece design, optional zoning and smart home integration for ultimate control.
The new PEA-M Series is designed to suit Australian homes with guaranteed cooling performance at higher ambient temperatures and heating performances at low ambient conditions. It complements the aesthetically designed house with concealed installation, a wide range of capacities and airflows to best suit the comfort conditions.
A new 16 kW model has been added to the range. The 16 kW indoor model can be connected to either a single-phase or three-phase Mr Slim outdoor unit.
Specifications
| Indoor unit | PEA-M160HAA | PEA-M160HAA | ||
|---|---|---|---|---|

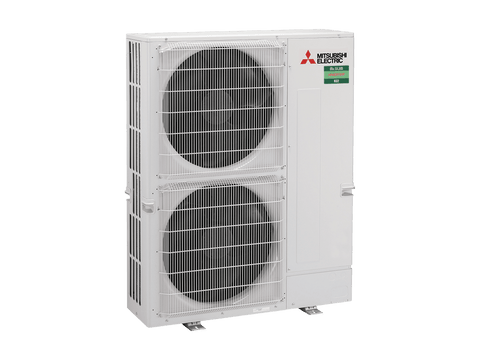

| Outdoor unit | PUZ-ZM160VKA | PUZ-ZM160YKA | ||
| Refrigerant | R32 | R32 | ||
| Cooling | Capacity (Min-Rated-Max) | kW | 4.7-16.0-17.0 | 4.7-16.0-17.0 |
| Air Volume (In) Lo-Mid-Hi | L/S | 700-800-900-1000 | 700-800-900-1000 | |
| Total Input (Rated) | kW | 4.95 | 4.95 | |
| Heating | Capacity (Min-Rated-Max) | kW | 5.4-18.0-20.0 | 5.4-18.0-20.0 |
| Air Volume (In) Lo-Mid-Hi | L/S | 700-800-900-1000 | 700-800-900-1000 | |
| Total Input (Rated) | kW | 4.58 | 4.58 | |
| Indoor unit | Dimensions (HxWxD) | mm | 380×1405×900 | 380×1405×900 |
| Weight | kg | 66 | 66 | |
| Outdoor unit | Dimensions (HxWxD) | mm | 1338×1050×330(+40) | 1338×1050×330(+40) |
| Weight | kg | 115 | 116 | |
| System Name | PEAM160HAAVKIT | PEAM160HAAYKIT | ||
