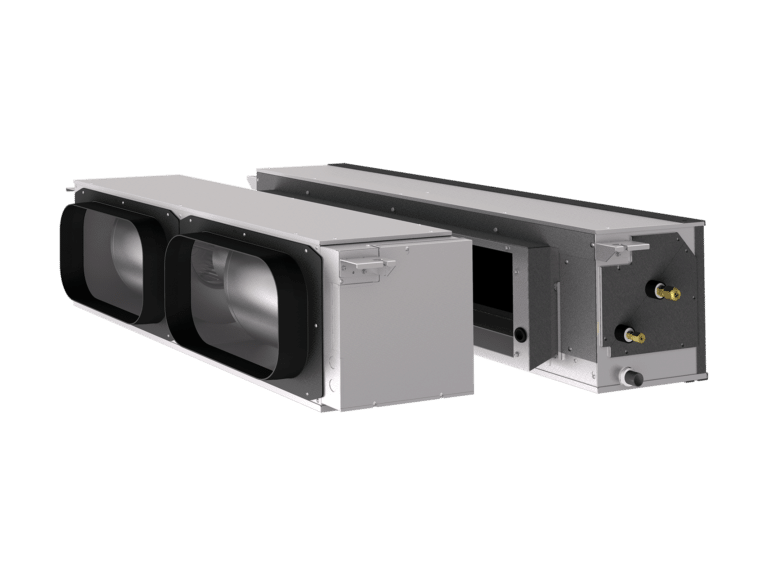

Keep your home at the ideal temperature all year long with the PEA-M100-140HAA ducted air conditioning unit, with a 2-piece design, optional zoning and smart home integration for ultimate control.
- High external static pressure up to 150 Pa
- 2 piece construction, ideal for home renovation
- Flexibility in design
- Ideal for existing homes
- 4 fan speed settings
Specifications
| Indoor unit | PEA-M125HAA | PEA-M125HAA | PEA-M125HAA | ||
|---|---|---|---|---|---|

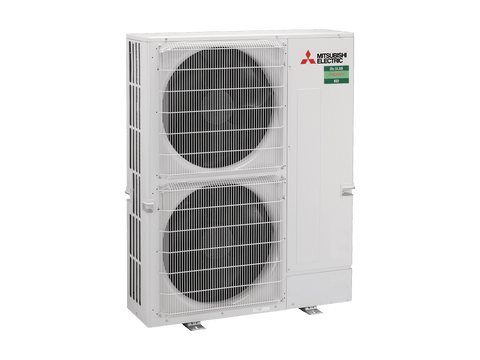

| Outdoor unit | PUZ-M125VKA-A | PUZ-ZM125VKA-A | PUZ-ZM125YKA-A | ||
| Refrigerant | R32 | R32 | R32 | ||
| Cooling | Capacity (Min-Rated-Max) | kW | 6.0-12.0-13.5 | 5.5-12.5-14.0 | 5.5-12.5-14.0 |
| Air Volume (In) Lo-Mid-Hi | L/S | 700-800-900-1000 | 700-800-900-1000 | 700-800-900-1000 | |
| Heating | Capacity (Min-Rated-Max) | kW | 4.1-14.0-15.5 | 5.0-14.0-16.0 | 5.0-14.0-16.0 |
| Air Volume (In) Lo-Mid-Hi | L/S | 700-800-900-1000 | 700-800-900-1000 | 700-800-900-1000 | |
| Indoor unit | Input[Cool/Heat] (Rated) | kW | 0.477 | 0.477 | 0.477 |
| Dimensions (HxWxD) | mm | 380×1405×900 | 380×1405×900 | 380×1405×900 | |
| Weight | kg | 66 | 66 | 66 | |
| Outdoor unit | Dimensions (HxWxD) | mm | 981×1050×330(+40) | 1338×1050×330(+40) | 1338×1050×330(+40) |
| Weight | kg | 84 | 113 | 114 | |
